Electromagnetic Flowmeters Products

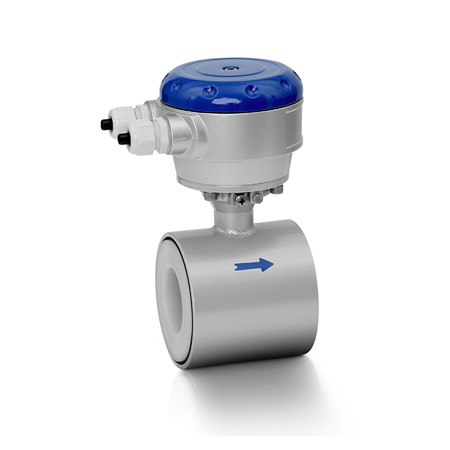

Optiflux 1000

Optiflux 1000 Electromagnetic Flow Sensor

The economical solution in sandwich design, Easy to install, Affordable price

Maintenance free Hastelloy electrodes. PFA liner with excellent chemical resistance and Minimum conductivity of 5 µS/cm

The OPTIFLUX 1000 electromagnetic flow sensor is an economical solution for a wide range of applications. The flowmeter can be used in applications (including various aqueous solutions), where other measurement techniques were previously used.

2Download PDF

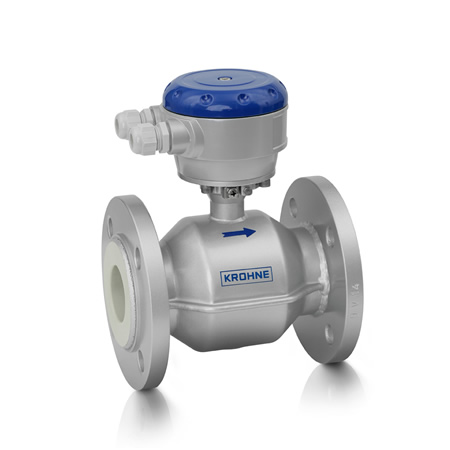

Optiflux 2000

Optiflux 2000 Electromagnetic Flow Sensor

The water and wastewater specialist with all the required International drinking water approvals, Compliance wit OIML R-49, ISO 4064 DVGW and ISO installation length, IP 68 Maintenance free. In situ verification with KROHNE MagCheck, Fitting length to DVGW and ISO

Large diameter range up to DN 3000

2Download PDF

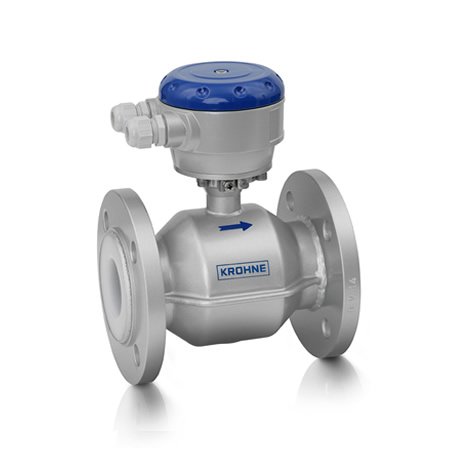

Optiflux 4000

Optiflux 4000 Electromagnetic Flow Sensor

The all-round process specialist First Choice in electromagnetic flowmeters

Robust and reliable , 250,000 units in operation with Conductivity down to 1 μS/ cm & Temperature up to 180°C . Easy to select, fit and forget, Chemically resistant to acids and alkalis . Diameter range: DN 2.5 – 3000. Various electrode materials, Hazardous area versions available.

Standard liners : PTFE, PFA, ETFE

2Download PDF

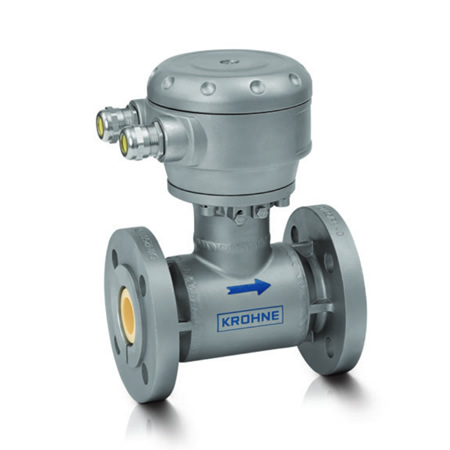

Optiflux 5000

Optiflux 5000 Electromagnetic Flow Sensor

The most accurate and abrasion-resistant Flowmeter for very aggressive and abrasive fluids. Full vacuum resistant , sizes DN 2.5…100 1/10″ …4″

Repeatability: < 0.06% Unique flow tube design, with profile-optimizing cross-section Ceramic flow tube & Fused-in-place Cermet or platinum electrodes; bonded electrodes in the flow tube are absolutely leakproof, plus Stainless-steel housing. The result of a special flow tube design with conical parts, streamlining distorted flow profiles means Leading test institutes use OPTIFLUX 5000 as their master meter.

2Download PDF

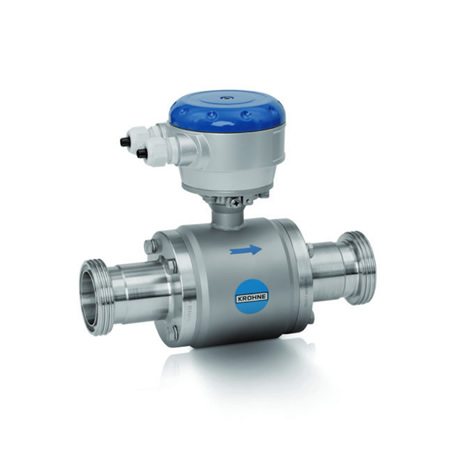

Optiflux 6000

Optiflux 6000 Electromagnetic Flow Sensor

The flow sensor for sanitary and hygienic applications, The sterile solution!

Highlights Completely sanitary design in stainless steel, Fully suitable for food, beverage and pharmaceutical process connections and insertion lengths also FDA approved, EHEDG & 3A certified

Product features Unique L-shaped gasket prevents expansion of the gasket into the measuring tube Simple and effective SIP (Steaming in Place) and CIP (Cleaning in Place) Cleaning temperatures depending from the process connection up to 150ºC / 300°F

2Download PDF

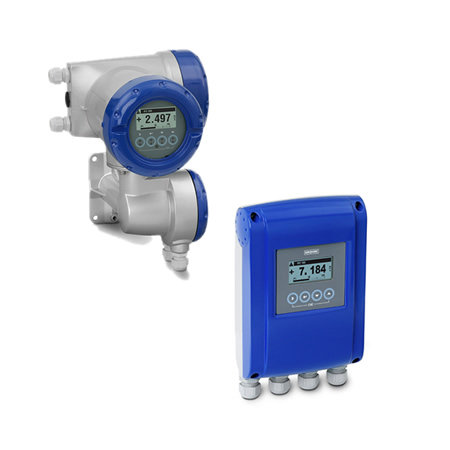

Signal Converters

Optiflux Electromagnetic Signal Converters

The all-round flow converter

The versatile IFC 300, IFC100 flow converters are a powerful yet economical solution for a wide range of applications. The IFC 100/300 can be used in combination with any OPTIFLUX flow sensor and can be used in any application.

Also The IFC 100 offers a broad range of performance with an outstanding price/performance ratio. The IFC 100 has been developed for applications requiring an economical solution for the measuring task at a high technological level.

2Download PDF

2Download PDF

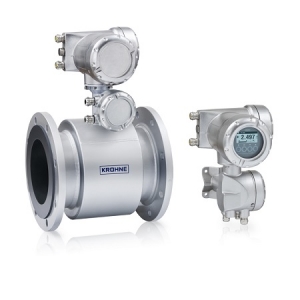

Tidalflux 2300F

The TIDALFLUX 2000 flow sensor with integrated and non-contact capacitive level measuring system provides accurate flow measurement in partially filled pipes.

TIDALFLUX is designed to measure reliably between 10% and 100% of the pipe cross section. The integrated level sensors in the liner are in no contact with the liquid and are therefore insensitive against fat and oil floating on the surface.

2Download PDF
