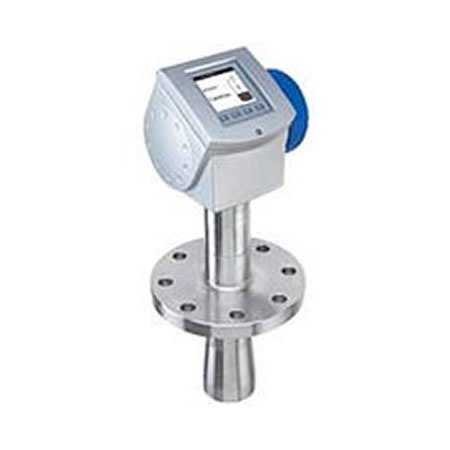

Level Meter for distance, level and volume of liquids, pastes and solids OPTIWAVE 7300C works better than any radar ever before. In contrast to earlier radar devices, the new OPTIWAVE with its more advanced design solutions is able to operate over a larger bandwidth. This ensures a sharper resolution and higher accuracy. The higher signal dynamics of OPTIWAVE allow the detection of even the smallest level changes.
Reliable and safe communication is essential to your everyday work in ex-hazardous areas. The Ex-Mobile 05 is an ATEX-certified mobile phone for use in Zone 1 and Zone 2, and always provides you with the necessary safety for your work.
The compact housing and the integrated rubber parts provide you with a perfect grip and also deliver protection against dust and shocks in accordance with IP54 protection rating.

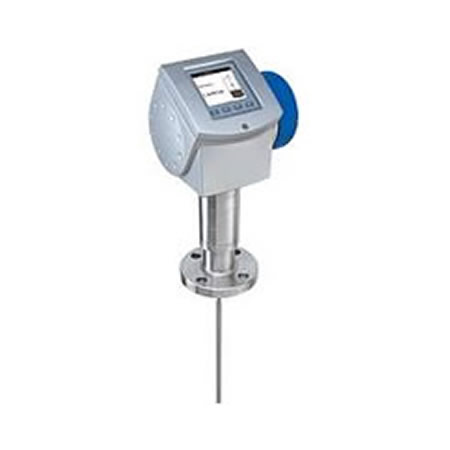

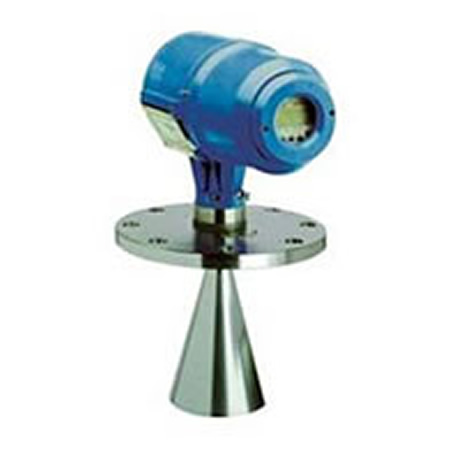

Reliable measurement under hazardous conditions, of tanks with agitators or other internals Available interfaces: HART(R), RS 485, PROFIBUS-PA, Fieldbus Foundation Max. allowable operating pressure up to 400 bar / 5800 psig Straight, rectangular and S-shaped antenna extensions Measuring range up to 100 m / 330 ft A variety of antennas available including PTFE Wavestick BM70A FMCW Radar Level Sensor
Reliable measurement under hazardous conditions, of tanks with agitators or other internals Available interfaces: HART(R), RS 485, PROFIBUS-PA, Fieldbus Foundation Max. allowable operating pressure up to 400 bar / 5800 psig Straight, rectangular and S-shaped antenna extensions Measuring range up to 100 m / 330 ft A variety of antennas available including PTFE Wavestick

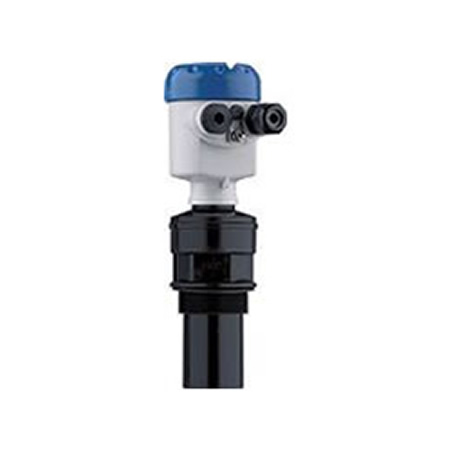

OPTISOUND 3010 C, 3020 C and 3030 C ultrasonic sensors are especially suitable for level measurement of liquids, but a real so good for solids. The instruments differ in the measuring range, the transducer version and the process fitting. Through different, adapted emitting frequencies, levels in a measuring range of 0.25 m … 15 m (0.82 ft … 49.2 ft) can be measured. Resistant materials for transducers and process fittings also allow applications in corrosive products (depending on the model).

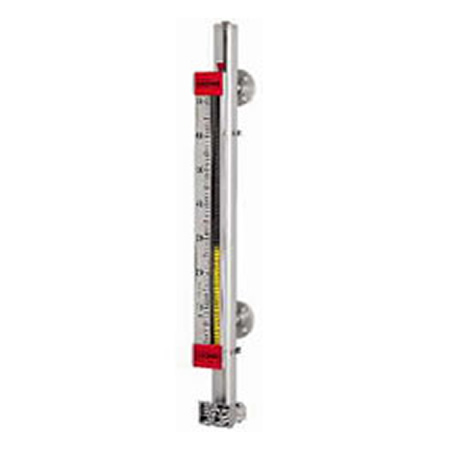

Simple, rugged design Particularly suitable for use with highly corosive, noxious or flammable substances and ideal for severe operating conditions Level Measuring tube for pressures up to 120 bar / 1740 psig and temperatures up to 300°C / 570°F Easily read scale for level readings, no power required Limit switches (option) suitable for mounting (MS 15 or MS 20) 3 different types of protection (STD, EXI or EXD).

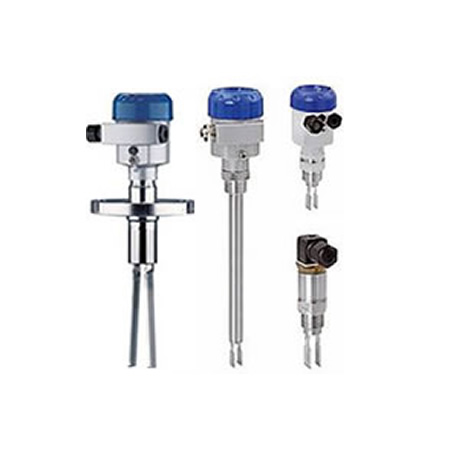

Level Switches for Liquids & Solids OPTISWITCH 4000/5000 series is a level sensor that uses a vibrating fork for detecting level. It is designed for use in all liquids. It is not affected by foam and external vibration. It is also unaffected by variations of product properties such as Fork: 316L Process fitting: 316L Process temperature / Process pressure -50 – 150°C / 16 bar -50 – 250°C (Derating 16-6 bar) Approvals EEx ia, EEx d, StEx.
